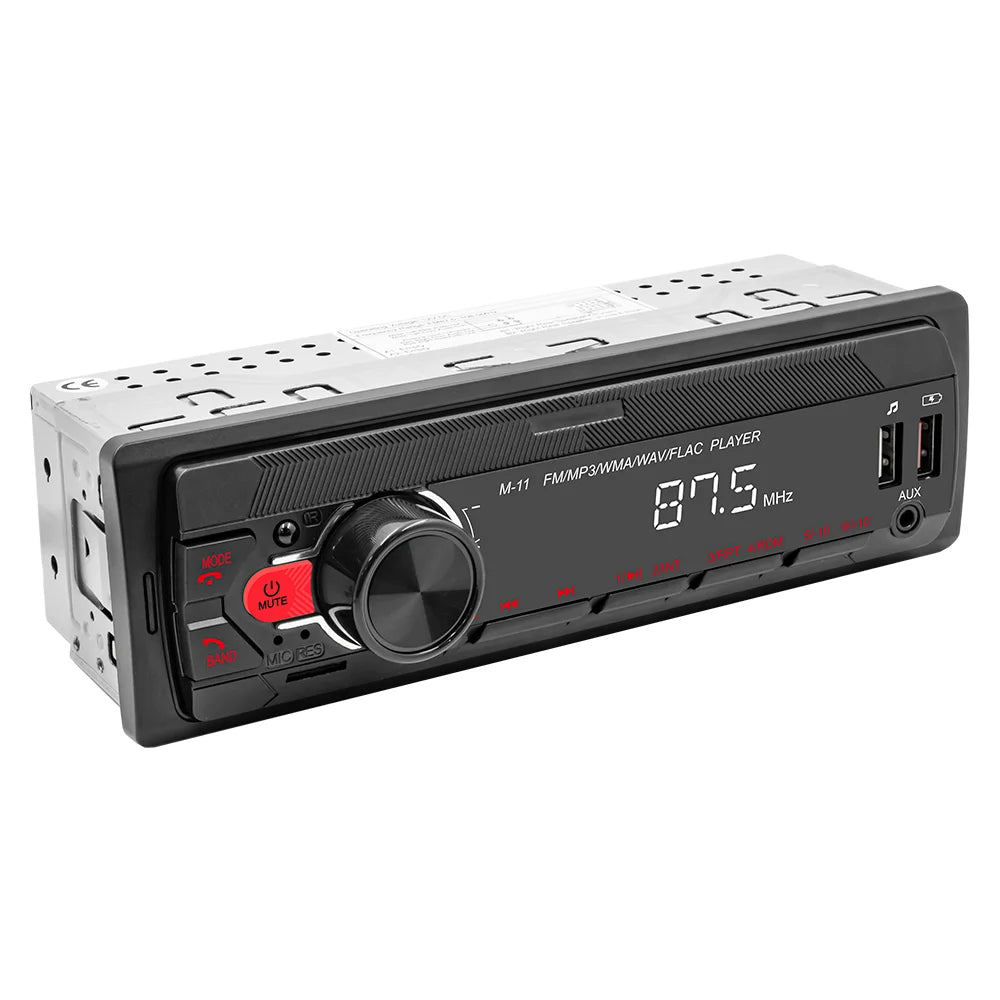

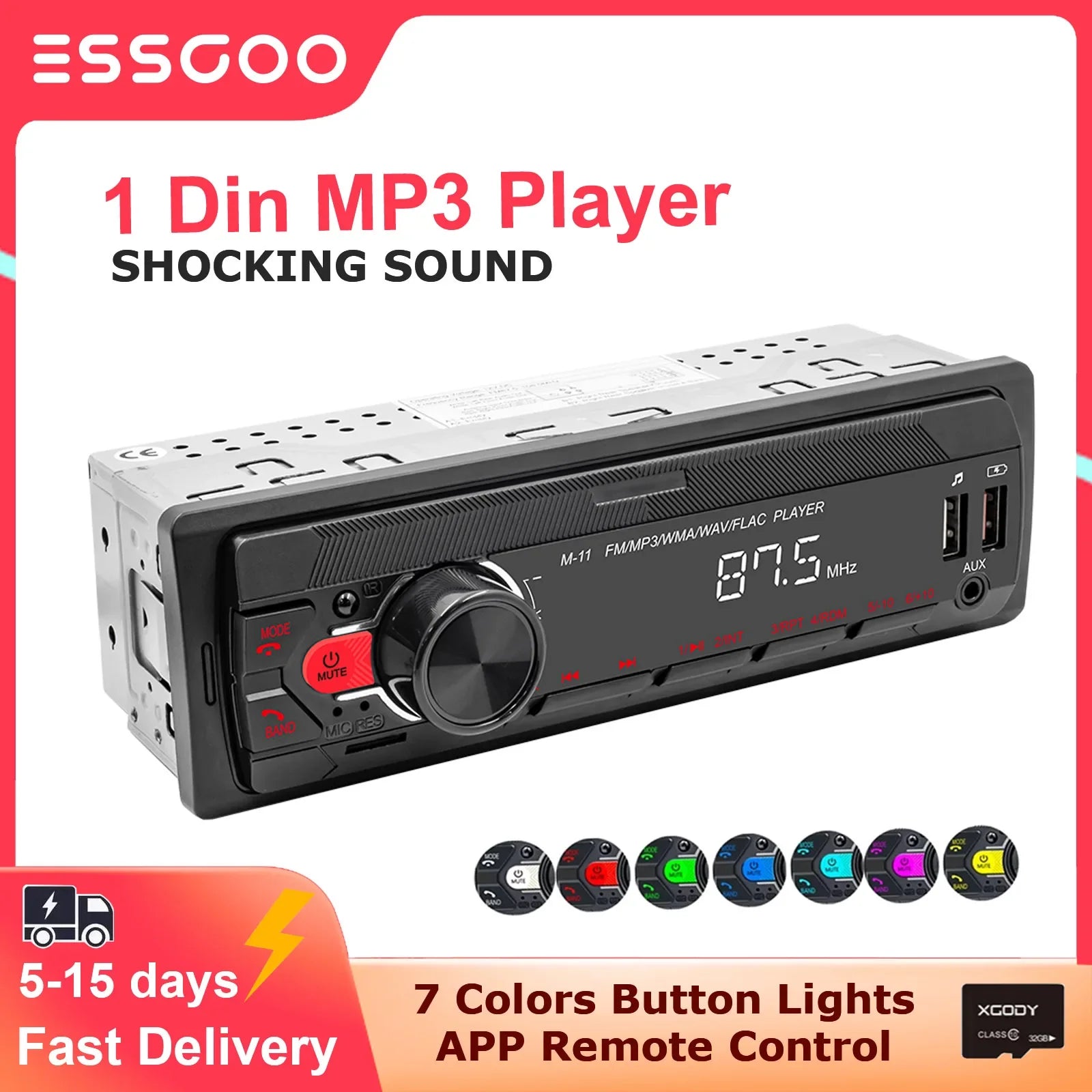

ESSGOO-Universal Multimedia Player for Car, 1 Din MP3 Car Radio, Audio Stereo, Bluetooth, Automotive, Colorful Buttons, 1 Din
SPECIFICATIONS
Brand Name: ESSGOO
Choice: yes
Display Size: None
High-concerned chemical: None
Item Size: 188x58x55mm
Item Weight: 0.4
Material: plastic
Model Name: M-11
OSD Language: English
Origin: Mainland China
Out Power: 45Wx4
Radio Response Bandwidth: 87.5~108.0MHz
Special Features: Radio Tuner
Voltage: 12 V
semi_Choice: yes
Feature:
1. Radio (FM)
2. Supports reading TF card, USB flash drive (audio)
3. AUX function
4. Bluetooth function
5. RCA audio output can be connected to a subwoofer

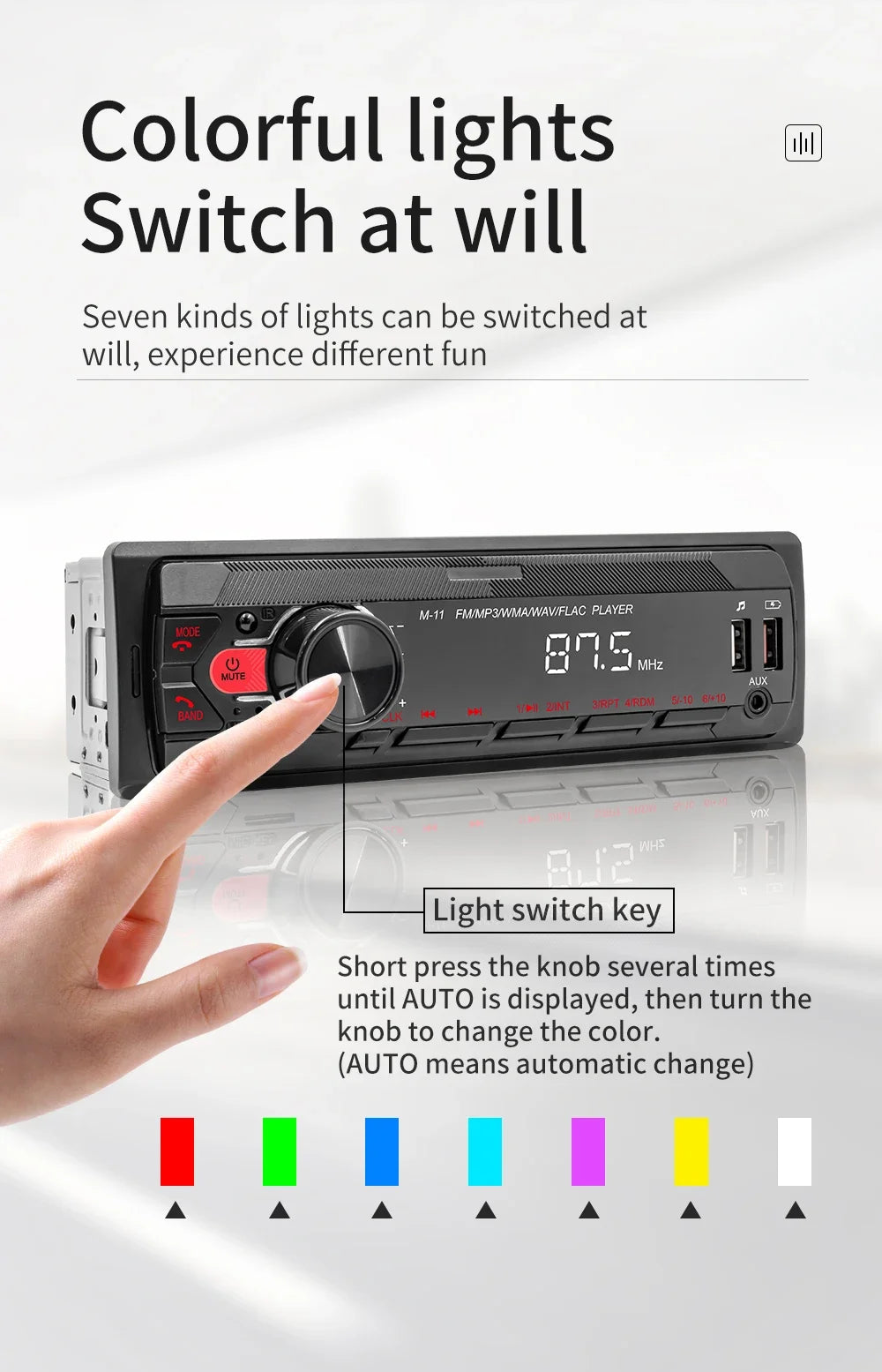

6. Colorful lights
7. Supports USB output
8. Voice assistant function (in Bluetooth mode, long-press the knob to wake up the voice assistant)

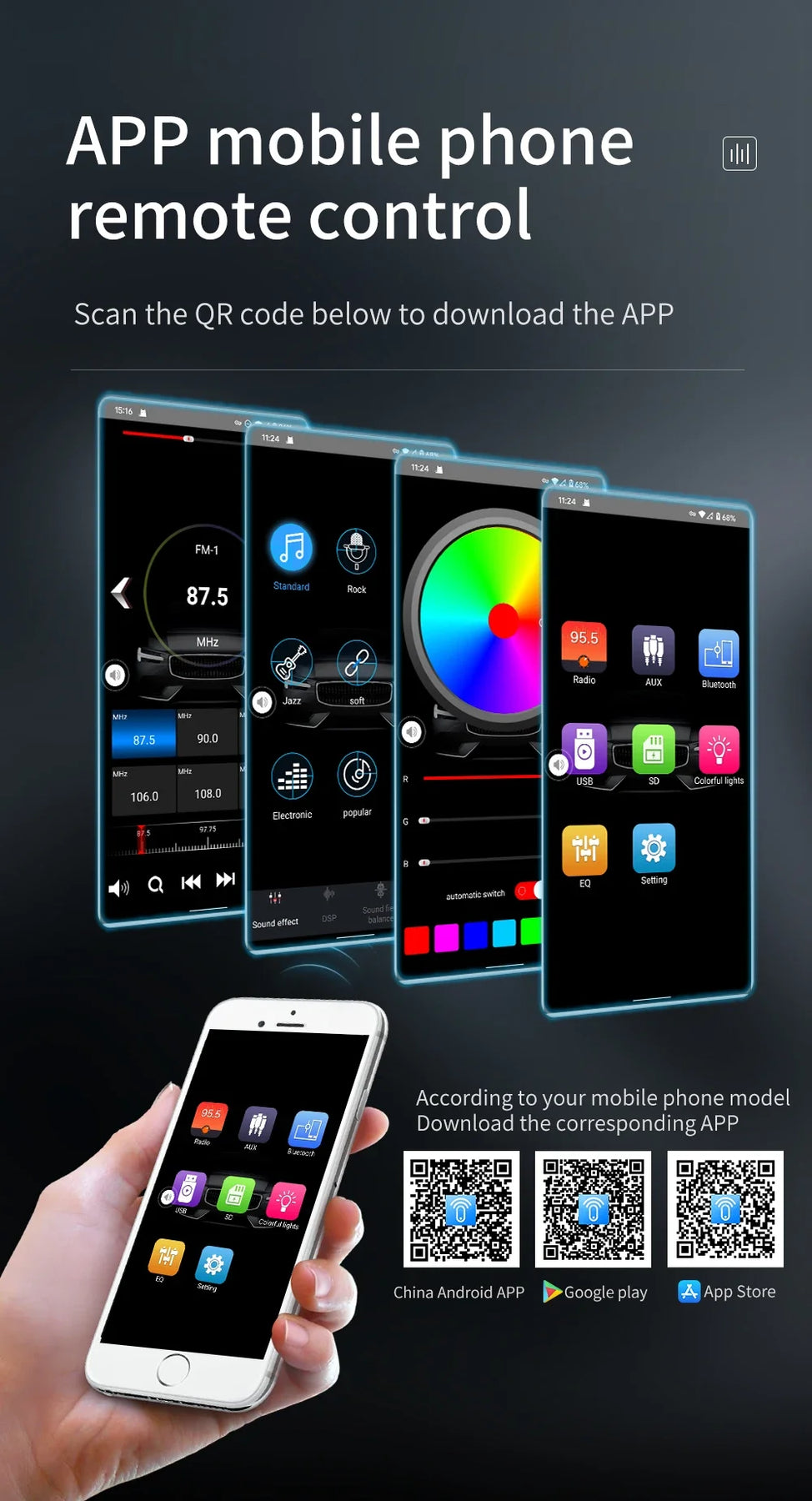

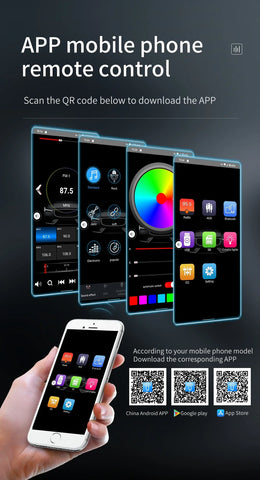

9. Mobile app function
Specification:
Model: 1 Din Car MP3 Player Radio
CPU: 2900
Radio Frequency: FM 87.5~108.0MHz
Output power: 45Wx4
Working voltage: 12~14.4V
Bluetooth version: 5.0 (default name: Car-BT)
Screen size: LED display (white digital tube)
Installation size: 178x50mm
Shell size: 188x58mm
Depth: 55mm
Color box size: 200x110x80mm (cowhide box)
Mobile phone interconnection: support app connection
USB port: front USB 2.0 x 2 (one for charging, one for reading USB flash drives)
TF card: support
Reset button: support
RCA port: Audio output 2 channels (1 channel left channel + 1 channel right channel), front AUX audio input (left channel + right channel)
Audio format: MP3/WMA/WAV/FLAC
Video format: not supported
Picture format: not supported
Factory set password: not supported
Locate and find a car: not supported
Screen rotation: not supported
Rearview camera input function: not supported
Play video warning: not supported
Steering wheel control: not supported
Video output: not supported
Offline map: not supported
Dashcam input function: not supported
GPS navigation: not supported
DAB function: not supported
Language: English
Packing list:
1 X Car Radio
1 X Remote Control
1 X Power Harness
1 X Removal Key
1 X Manual
A:(GREEN) Rear left horn positive
(GREEN/BLACK) Rear left horn negative
(WHITE) Front left horn positive
(WHITE/BLACK) Front left horn negative
(GRAY) Front right horn positive
(GRAY/BLACK) Front right horn negative
(VIOLET) Right rear horn positive
(VIOLET/BLACK) Right rear horn negative
Note: 8 horn wires,each wire should not touch or touch other places. There are only two speakers. Only two sets of wires are connected. The other lines are empty.
B:+12 Accessory/Switch(Red)
Power Antenna/Amplifier Turn On(Blue)
+12V Constan Power Supply(Yellow)
Ground Wire(Black)
